Add Topographic Attributes Low

This tool add a number of topographic attributes to the input bathymetric low feature class.

The following attributes are calculated from the bathymetry and slope-gradient rasters to describe the topographic properties of each bathymetric high feature.

  1. headDepth: water depth at the head point of the feature polygon, along the long axis

  2. footDepth: water depth at the foot point of the feature polygon, along the long axis

  3. head_foot_depthRange: the difference in water depth between the head point and the foot point of the feature polygon

  4. head_foot_gradient: the slope-gradient between the head point and the foot point of the feature polygon, which is calculated by equation (1)

    (1)\[\arctan(\frac{head\_foot\_depthRange}{head\_foot\_length})\]

  5. minDepth: the minimum water depth within the feature polygon

  6. maxDepth: the maximum water depth within the feature polygon

  7. depthRange: the difference in water depth within the feature polygon, which is calculated by equation (2)

(2)\[ (maxDepth - minDepth)\]

  1. meanDepth: the mean water depth within the feature polygon

  2. stdDepth: the standard deviation of the water depths within the feature polygon

  3. minGradient: the minimum slope-gradient within the feature polygon

  4. maxGradient: the maximum slope-gradient within the feature polygon

  5. gradientRange: the difference in slope-gradient within the feature polygon, which is calculated by equation (3)

(3)\[(maxGradient - minGradient)\]

  1. meanGradient: the mean slope-gradient within the feature polygon

  2. stdGradient: the standard deviation of the slope-gradients within the feature polygon

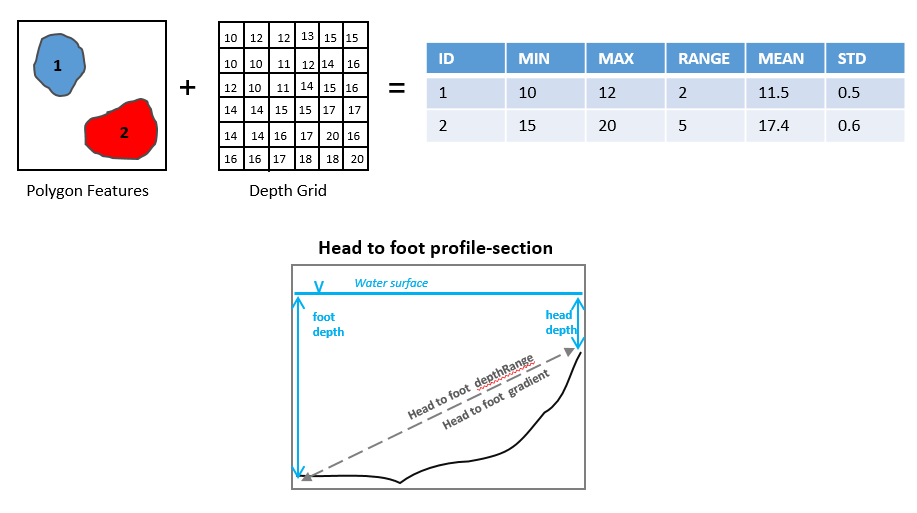

_images/topographic_attributes1_2.png
 1import arcpy
 2from arcpy import env
 3from arcpy.sa import *
 4arcpy.CheckOutExtension("Spatial")
 5
 6# import the python toolbox
 7arcpy.ImportToolbox("C:/semi_automation_tools/User_Guide/Tools/AddAttributes.pyt")
 8
 9env.workspace = 'C:/semi_automation_tools/testSampleCode/Gifford.gdb'
10env.overwriteOutput = True
