Connect Nearby Linear HF FeaturesΒΆ

A linear bathymetric low feature (e.g., valley/channel) is sometimes broken into multiple smaller and disconnected features due to several possible reasons:

  • deficiency in the bathymetric data

  • deficiency in the mapping method

  • natural local processes such as erosion and deposition

Ideally, these disconnected features should be merged to form a single integrated linear feature to facilitate the subsequent attribute generation and classification.

This tool is used to connect (or merge) two or multiple bathymetric low features through their feet (F) and heads (H) that satisifying a number of conditions based on distance and orientation.

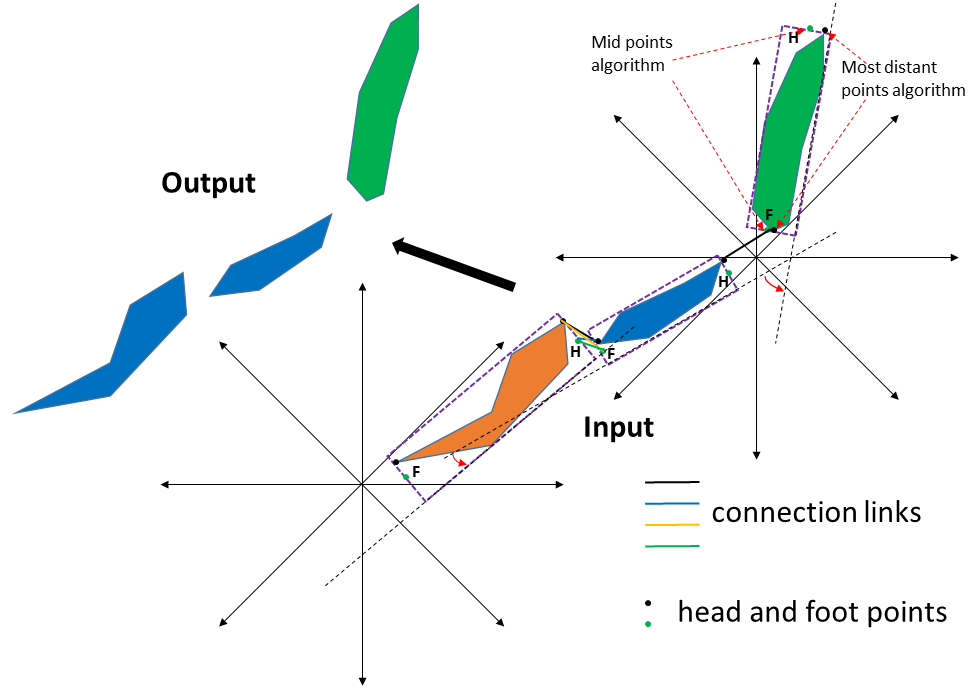

The first step of the process is to identify the head and foot points for each feature. There are three algorithms available for this step.

  1. The Mid points to Minimum Bounding Rectangle algorithm identifies the head and foot points as the middle points on the correponding sides of the minimum bounding rectangle

  2. The Most distant points on feature algorithm identifies the head and foot points as the intercepted locations between the feature and the corresponding sides of the minimum bounding rectangle

  3. The Mid points and Most distant points algorithm identifies two sets of head and foot points using the above two algorithms

    • The Mid points algorithm

    • The Most distant points algorithm

The next step is to generate connection links from these head and foot points. These links are created from the feet of each feature to the heads of each of its nearby features that are within the distance threshold.

In the following step, the tool selects a subset of these links based on certain criteria. These criteria are determined by the distance threshold, the angle threshold, the distance weight and the angle weight.

In this step, there are 12 link directions to consider when determining which nearby features (if any) should be connected:

  • south-to-north

  • north-to-south

  • west-to-north

  • north-to-west

  • south-to-east

  • east-to-south

  • west-to-east

  • east-to-west

  • south-to-west

  • west-to-south

  • north-to-east

  • east-to-north

For example, for the west-to-north link direction considers whether a feature orientated (from the east) to the west with a nearby feature orientated from the north (to the south) should be connected.

Finally, the nearby features identified from this subset of suitable connection links are merged.

When there are a large number of features in the dataset, the Area Threshold and Length to Width Ratio Threshold parameters can be used to select a subset of features for the above connection process.

Note that the output featureclasses from the Merge Connected Features Tool can be used as the input to this tool.

_images/connectHF.png
 1from arcpy import env
 2from arcpy.sa import *
 3arcpy.CheckOutExtension("Spatial")
 4
 5# import the python toolbox
 6arcpy.ImportToolbox("C:/semi_automation_tools/User_Guide/accessory_tools/Accessory_Tools.pyt")
 7
 8env.workspace = 'C:/semi_automation_tools/testSampleCode/Point_Cloates.gdb'
 9env.overwriteOutput = True
10
11# specify input and output parameters of the tool
12inFeat = 'pc_tpi10_075std_45m2'
13inBathy = 'pc_bathy'
14distT = '200 Meters'
15angleT = 20
16distW = 2
17angleW = 1
18conOption = 'Mid points on Minimum Bounding Rectangle'
19outFeat = 'pc_tpi10_075std_45m2_connected'
20tempFolder = 'C:/semi_automation_tools/temp'
21
22# execute the tool with user-defined parameters
23arcpy.AccessoryTools.Connect_Nearby_Linear_HF_Features_Tool(inFeat,inBathy,distT,angleT,distW,angleW,conOption,'#','#',outFeat,tempFolder)
